UGREEN NASync DXP6800 Pro
Intel i5 1235u 10-Core CPU, 2 * 10GbE, 8K HDMI, 2 * TBT4, Diskless
Regular price
£899.99 GBP
Sale price
£899.99 GBP
Regular price
£999.99 GBP
Unit price
per
- Supports 3rd-Party Drives: UGREEN NASync is widely compatible with third-party hard drives, including those from Western Digital, Seagate, Toshiba, and more. Please check our compatibility list for full details.
- Dual 10GbE Network Ports: Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s.
- 12th Gen 10-core Intel® Core™ Processor: With a 12th Gen, 10-core 12-thread Intel® Core™ i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.

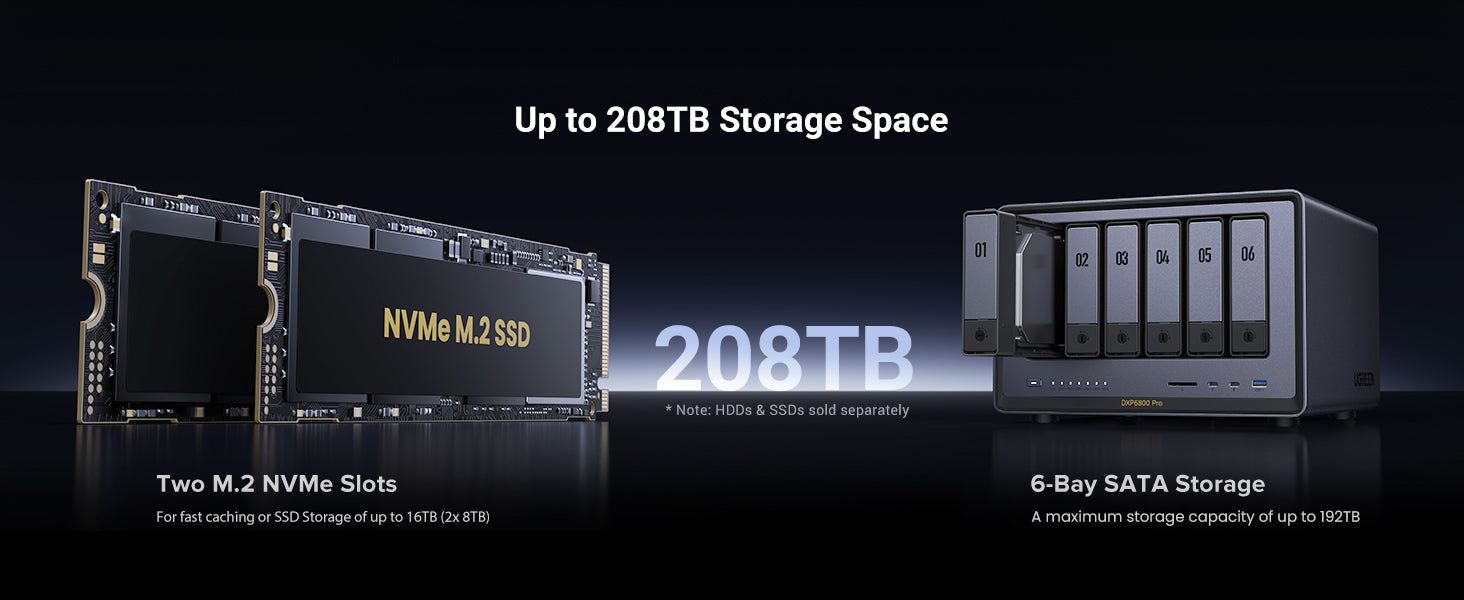

- 6-Bay, 196TB Massive Data Storage: Equipped with six SATA and two M.2 NVMe drive bays, the NASync DXP6800 Pro has a maximum storage capacity of up to 196TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.
- One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos and more, all from one convenient location.
- Expandable 8GB DDR5 Memory: 8GB DDR5 4800MHz provide the latest in processing speeds and improved software and system performance.
- AI Photo Album: Automatically organizes your photos by recognizing faces, scenes, objects, and locations. It can also instantly remove duplicates, freeing up storage space and saving you time. Click here to view a demonstration of the features of the UGREEN AI NAS Smart Album.
Couldn't load pickup availability
UGREEN NASync DXP6800 Pro
Expected to be delivered within 3 days.
Expected to be delivered within 3 days.
Comparison with Other UGREEN NASync
UGREEN NASync DXP6800 Pro
£899.99
Drive Bays
6-Bay (SATA)
8-Bay (SATA)
4 Slots (M.2 NVMe)
2-Bay (SATA)
4-Bay (SATA)
4-Bay (SATA)
CPU Model
1235u
1235u
1235u
N100
N100
8505
Expandable RAM (Max)
64GB
64GB
64GB
16GB
16GB
64GB
Flash Memory (System Disk)
SSD 128GB
SSD 128GB
SSD 128GB
eMMC 32GB
eMMC 32GB
SSD 128GB
SATA Drive Bays
6
8
-
2
4
4
M.2 SSD Drive Slots
2
2
4
2
2
2
RAID
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1
JBOD/Basic/0/1/5/6/10
JBOD/Basic/0/1/5/6/10
Maximum Storage
196TB (6x 30TB + 2x 8TB)
256TB (8x 30TB + 2x 8TB)
32TB (4x 8TB)
76TB (2x 30TB + 2x 8TB)
136TB (4x 30TB + 2x 8TB
136TB (4x 30TB + 2x 8TB)
LAN Ports (RJ45)
2x 10GbE
2x 10GbE
1x 10GbE
1x 2.5GbE
2x 2.5GbE
1x 2.5GbE, 1x 10GbE
Product
Drive Bays
CPU Model
Expandable RAM (Max)
Flash Memory (System Disk)
SATA Drive Bays
M.2 SSD Drive Slots
RAID
Maximum Storage
LAN Ports (RJ45)
UGREEN NASync DXP6800 Pro
£899.99
6-Bay (SATA)
1235u
64GB
SSD 128GB
6
2
JBOD/Basic/0/1/5/6/10
196TB (6x 30TB + 2x 8TB)
2x 10GbE
8-Bay (SATA)
1235u
64GB
SSD 128GB
8
2
JBOD/Basic/0/1/5/6/10
256TB (8x 30TB + 2x 8TB)
2x 10GbE
4 Slots (M.2 NVMe)
1235u
64GB
SSD 128GB
-
4
JBOD/Basic/0/1/5/6/10
32TB (4x 8TB)
1x 10GbE
2-Bay (SATA)
N100
16GB
eMMC 32GB
2
2
JBOD/Basic/0/1
76TB (2x 30TB + 2x 8TB)
1x 2.5GbE
4-Bay (SATA)
N100
16GB
eMMC 32GB
4
2
JBOD/Basic/0/1/5/6/10
136TB (4x 30TB + 2x 8TB
2x 2.5GbE
4-Bay (SATA)
8505
64GB
SSD 128GB
4
2
JBOD/Basic/0/1/5/6/10
136TB (4x 30TB + 2x 8TB)
1x 2.5GbE, 1x 10GbE
Specs
| SKU | 25898 |
| Model | DXP6800 Pro |
| Supported language | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 6-Bay (SATA) |
| Operating System | UGOS Pro |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (Max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | 6 |
| M.2 SSD Drive Slots | 2 |
| RAID | JBOD/Basic/0/1/5/6/10 |
| Maximum Storage | 196TB (6x 30TB + 2x 8TB) |
| LAN Ports (RJ45) | 2x 10GbE |
| PCIe Expansion | 1x PCIe x4 |
| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | 2x Thunderbolt 4 (40Gb/s) |
| High-Speed USB Ports (Rear Panel) | 2x USB-A (10Gb/s) |
| USB 2.0 (Rear Panel) | 2x USB-A (480Mb/s) |
| SD Card Reader | SD 4.0 |
| HDMI | 8K |
| Wi-Fi | - |
| Product Dimensions | L11.54×W10.16×H7.87 inches |
| Power Consumption |
43.07 W (drive access) 24.91 W(drive hibernation) |
